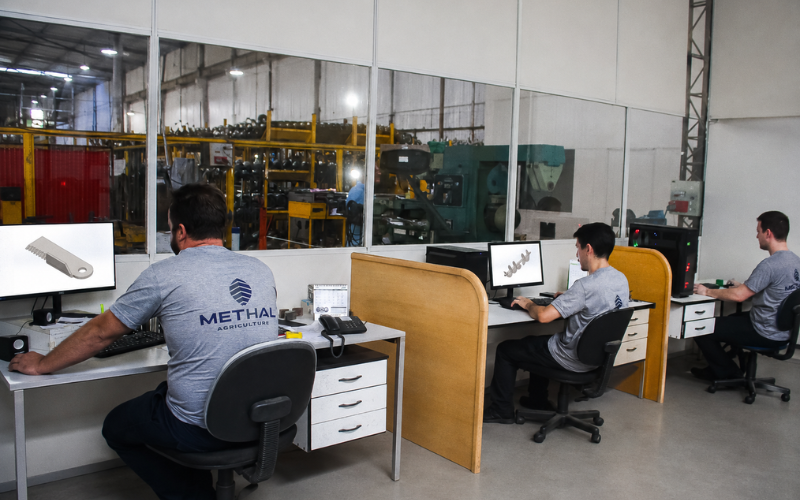

Product Development
A specialized engineering team, using advanced product development software, creates spare parts that meet original manufacturing standards and bring continuous improvements for the domestic and international market.
Technology and precision
in every part
From raw material to shipping: every step controlled to guarantee OEM quality.
How we manufacture
Each process is rigorously controlled to ensure dimensional compliance, strength and durability.

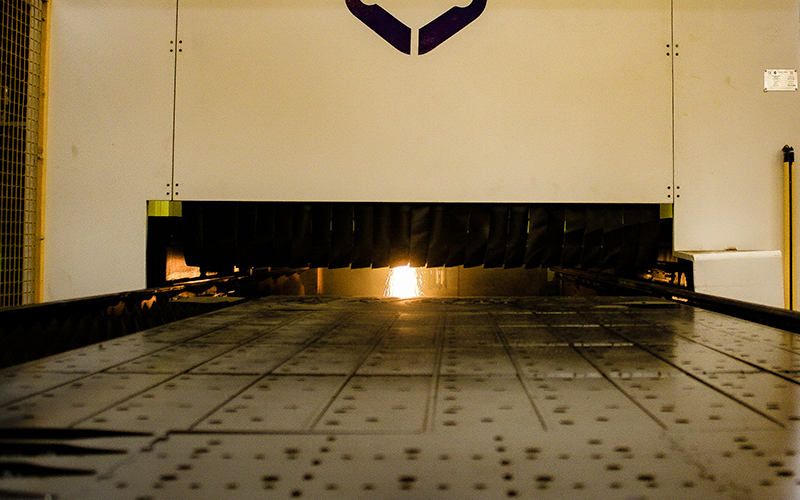

Laser and Plasma Cutting
Máquinas de corte a laser com tecnologia de fibra ótica e CO₂ para chapas de até 3 m x 19 mm. Corte a plasma para chapas de até 6 m x 24 mm, garantindo alta produtividade e precisão dimensional.

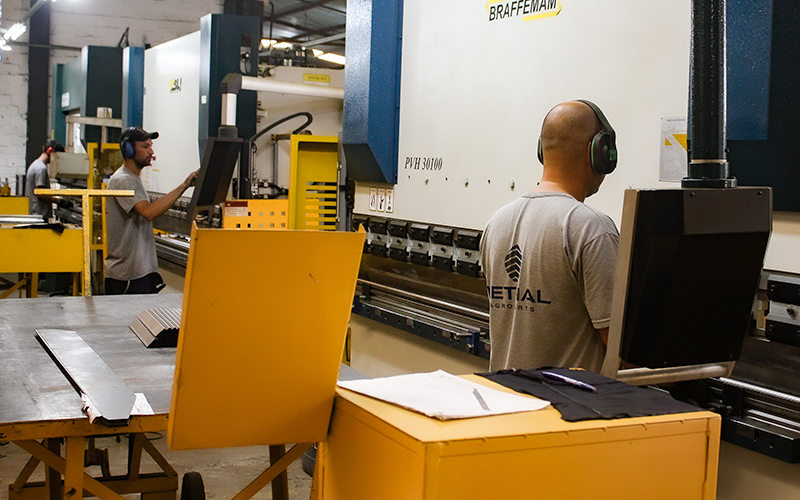

Bending and Stamping
CNC press brakes with up to 150 tons of force for parts up to 3 m. Stamping center with hydraulic presses up to 180 tons and automatic presses, including coil and drawn wire processing.

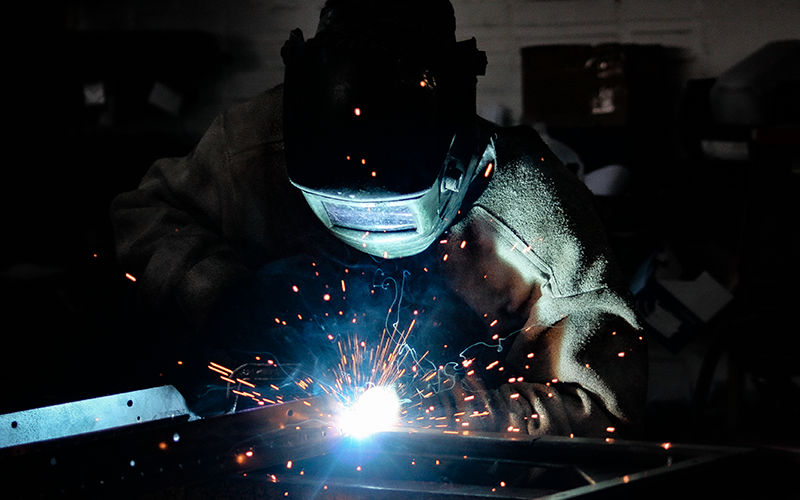

AWS-Certified Welding
22 células de solda com soldadores certificados anualmente conforme AWS B2.1 2005 e AWS D14.3 2010. Contamos também com solda robotizada, ampliando precisão e capacidade produtiva.

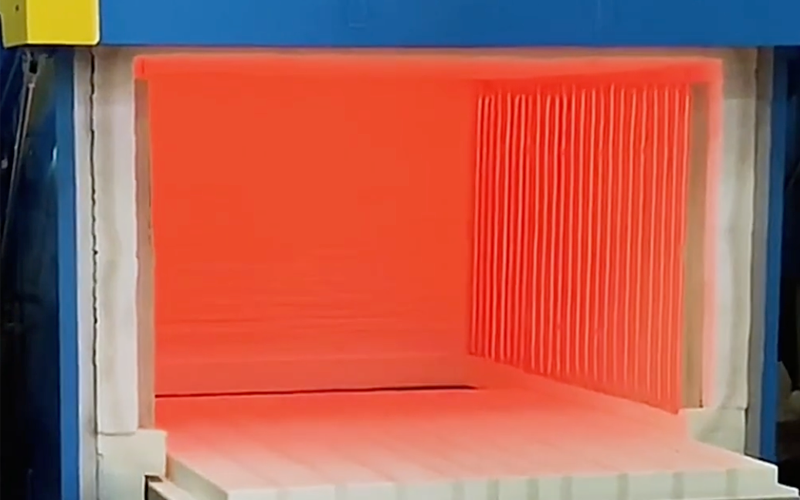

Heat Treatment
Furnaces up to 1,050 °C for full hardening and normalization with preheating. Induction hardening up to 52 HRC for high-wear parts.

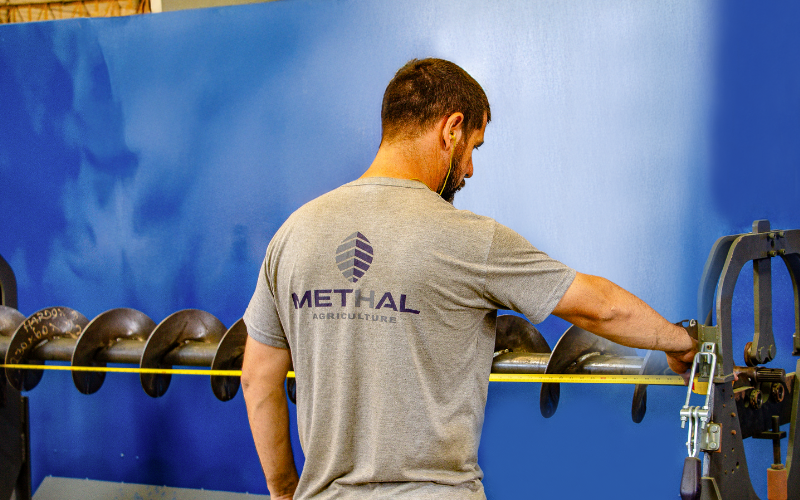

Alignment and Balancing
Static and dynamic alignment and balancing for parts up to 300 kg and 6 meters long, reducing vibration and extending component life.

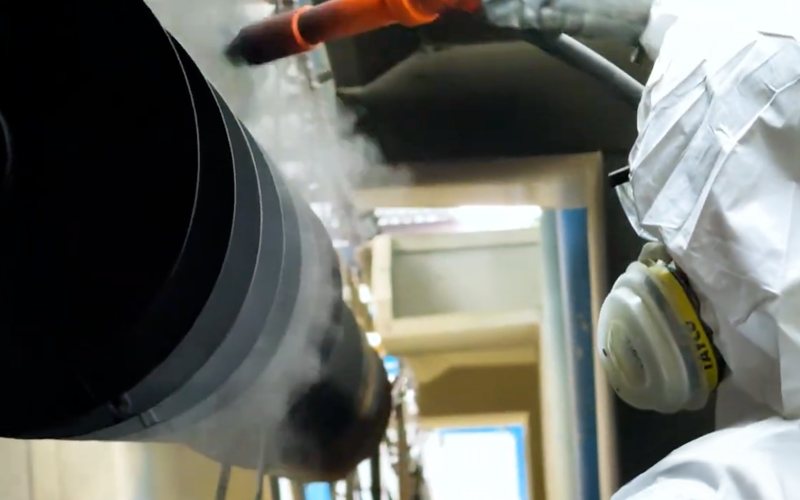

Painting
Painting eletrostática a pó epóxi em linha contínua, com cabines de 6 metros e estufa de cura de 15 metros, limpeza em circuito fechado e acabamento uniforme.

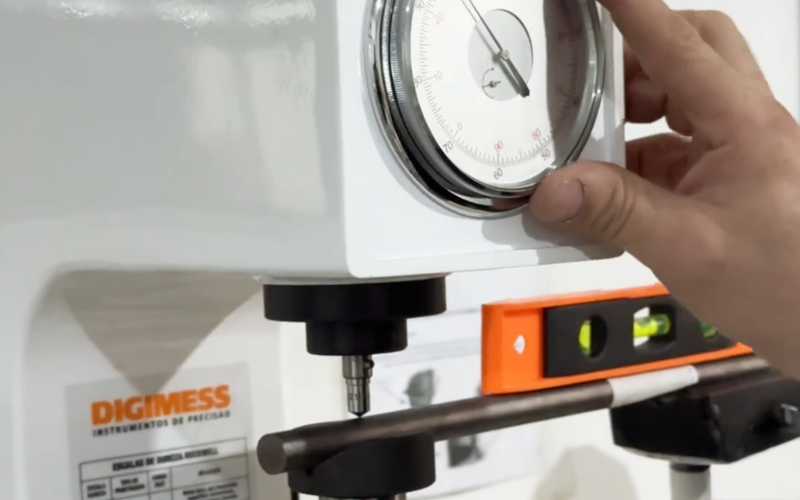

Quality Laboratory
Inspection using a durometer and microscope to assess hardness and identify imperfections, ensuring dimensional and structural compliance in every batch produced.

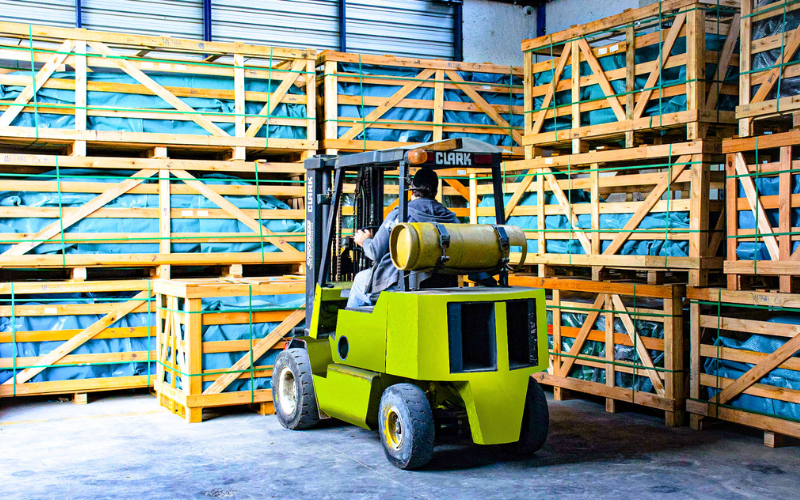

Shipping
Technical packaging adapted to the dimensions of each part, reducing the risk of transport damage for customers in Brazil and abroad.
See it in action
Inside our factory
Discover each step of the Methal manufacturing process.

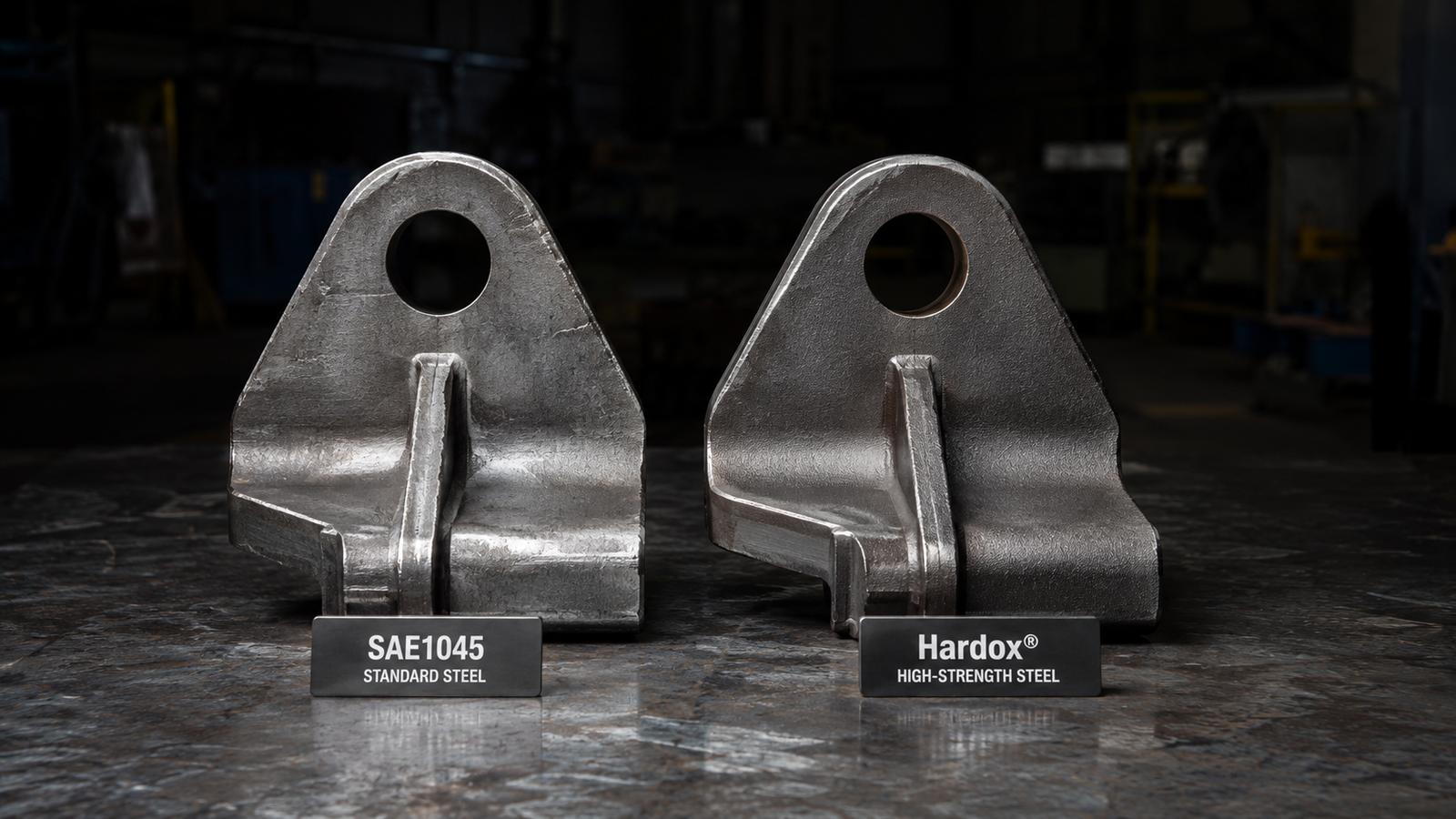

Material options
Carbon Steel or Alloy Steel as the base.
Carbon Steel or Alloy Steel as the base.
Hardox® as the premium upgrade.
Methal manufactures its parts in Carbon Steel or Alloy Steel (Boron), high-strength materials with or without hardening, suitable for most combine harvester and planter applications. For extremely abrasive conditions, we offer the same part in Hardox® Steel, a premium upgrade with greater durability and less frequent replacement.
Aço Carbono - Padrão
- Standard material across the entire line
- High mechanical strength
- Accessible cost
Aço Liga (Boro) - Alta temperabilidade
- High hardness after heat treatment
- Greater wear resistance
- Intermediate cost
Hardox® - Premium
- Upgrade available on request
- Extreme wear resistance
- Greater field durability
* Hardox® availability subject to consultation by part model.
Aço Carbono, Aço Liga e Hardox® - Comparativo Technical
Which material to choose for each field application?
Aço Carbono - Padrão
- Available heat treatment
- No treatment or hardening, depending on the product
- Hardness (HB)
- 170–210 HB, up to approximately 230–260 HB when hardened
- Wear resistance
- Good, higher when hardened
- Estimated service life
- Market standard, above standard when hardened
- Initial cost
- Lower
- Cost per working hour
- Higher long-term
- Primary recommendation
- General use, normal conditions
- Steel certification
- NBR/ASTM
Aço Liga (Boro) - Alta temperabilidade
- Available heat treatment
- No treatment or hardening, depending on the product
- Hardness (HB)
- Approximately 250–320 HB when hardened
- Wear resistance
- High, even higher when hardened
- Estimated service life
- Above standard, medium or high when hardened
- Initial cost
- Intermediate
- Cost per working hour
- Intermediate
- Primary recommendation
- Parts requiring higher hardness, with or without heat treatment
- Steel certification
- NBR/ASTM
Hardox® - Premium
- Available heat treatment
- Heat treatment already integrated at the factory
- Hardness (HB)
- 400-500 HB
- Wear resistance
- Very high, 4 to 8 times higher
- Estimated service life
- 2 to 3 times longer
- Initial cost
- Maior, cerca de 30% a 50%
- Cost per working hour
- Lower, mais econômico
- Primary recommendation
- Augers, blades and critical parts
- Steel certification
- Premium / Imported
| Characteristic | Aço Carbono - Padrão | Aço Liga (Boro) - Alta temperabilidade | Hardox® - Premium |
|---|---|---|---|
| Available heat treatment | No treatment or hardening, depending on the product | No treatment or hardening, depending on the product | Heat treatment already integrated at the factory |
| Hardness (HB) | 170–210 HB, up to approximately 230–260 HB when hardened | Approximately 250–320 HB when hardened | 400-500 HB |
| Wear resistance | Good, higher when hardened | High, even higher when hardened | Very high, 4 to 8 times higher |
| Estimated service life | Market standard, above standard when hardened | Above standard, medium or high when hardened | 2 to 3 times longer |
| Initial cost | Lower | Intermediate | Maior, cerca de 30% a 50% |
| Cost per working hour | Higher long-term | Intermediate | Lower, mais econômico |
| Primary recommendation | General use, normal conditions | Parts requiring higher hardness, with or without heat treatment | Augers, blades and critical parts |
| Steel certification | NBR/ASTM | NBR/ASTM | Premium / Imported |
* Hardness and service-life ranges vary by product and are estimates subject to technical confirmation.
Parts developed to
OEM standards
All our parts are developed following the strict OEM (Original Equipment Manufacturer) standards of leading manufacturers: John Deere, Case IH, Massey Ferguson and New Holland. This ensures technical compliance, traceability and safety for farmers.
With over 2,000 catalogued codes and our own laboratory, every part is developed, tested and approved before reaching the dealer.
See our processes applied across the parts lines
Catalog with complete specifications available for download.
